Quick Details
Type: Filling Machine
Condition: New
Application: Food, Beverage, Machinery & Hardware
Packaging Type: Bottles, Barrel
Packaging Material: Plastic, Metal
Automatic Grade: Automatic
Driven Type: Hydraulic
Voltage: 380v 50hz
Power: 2kw
Place of Origin: Jiangsu, China (Mainland)
Brand Name: SF
Model Number: oil bottle monoblock filling capping machine
Dimension(L*W*H): 1800*1800*2000mm
Weight: 3000kg, 2000kg
Certification: iso,ce, ISO9001,CE
After-sales Service Provided: Engineers available to service machinery overseas
Model: oil bottle monoblock filling capping machine
Capacity: 3000bph
Origin: China
Material: SUS304
Filling heads: 12
Capping heads: 6
Liquid: sunflower oil,soybean oil
Bottle size: 200-2000 ml
Packaging & Delivery
Packaging Details: | oil bottle monoblock filling capping machine will be wooden packing |
---|
Delivery Detail: | 45 days |
---|
Specifications

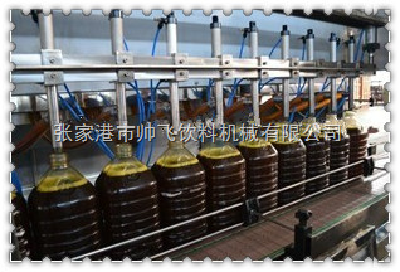

oil bottle monoblock filling capping machine
1.speed2000-4000bph.
2.oil bottle200-2000ml
3.Monoblock filling capping machine
Production capacity of oil bottle monoblock filling capping machine is automatic filling capping machine, 2000-4000bph ,4000-6000bottles per hour. Fill oil bottles from 200ml-2000ml.
Details about oil bottle monoblock filling capping machine
Precision standard of automatic soybean oil filling machine : ≤0.5%(calculate as 500ML, actual oil filling precision can reach to ≤0.3% )
oil bottle monoblock filling capping machine viscosity range: 0-2500 centipoises
oil bottle monoblock filling capping machine controlled by PLC, and accompany with many automatic alarm device
Rotary oil bottle monoblock filling capping machine price reasonable has leakage prevention device which has “National patented” leakage prevention filling head.
oil bottle monoblock filling capping machine with colorful touch screen, frequency conversion for speed .
Rotary oil bottle monoblock filling capping machine filling heads: 16-18 filling heads
oil bottle monoblock filling capping machine capping unit heads : 6 capping heads
Power: 380/220V ,2.8kw
air resource ≥0.5mpa , 2.0 m3/min
oil bottle shape : round bottle or square bottle or more special .
bottle size : from 200 ml to 1500ml
oil bottle monoblock filling capping machine dimension :2000*1300*2800mm
the weight of oil bottle monoblock filling capping machine : 2800kg
Specificaton on Electronic components
Steamed Generator offers heating air flow to shrink tunnel,shrink tunnel for shrink label on bottles , Shrink tunnels dual-blower operation, airflow cross rotation to reach the furnace temperature uniformity.
Make bottle good-looking and in case of oil leaking.
Application:
Labels: adhesive label, adhesive film, Plats, bar code.
Products : Use for pet round bottle , plastic bottle , oil bottle, mineral water bottle , square bottle or related products.
Industry: Widely used for food, toy, electric, medicine, hardware and so on.
Work process :
Bottle into sticker labeling machine, the sensor detects the signal and send the signal to sticker labeling machine control system . In appropriate position , the control system controls motor to send labels on products, the products pass the cover label device , the device turns products around, the label on the bottle , the process is finished.
Put bottles on conveyor-----sending bottles-----separate the bottles distance----sticker labeling machine works-----cover labels----finished
