Quick Details
Type: Filling Machine
Condition: New
Packaging Type: Bottles
Packaging Material: Glass
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V
Place of Origin: Jiangsu, China (Mainland)
Model Number: DGCF 32
Dimension(L*W*H): 1700X1100X2300
Weight: 2000KG
Certification: CE ISO SGS
After-sales Service Provided: Engineers available to service machinery overseas
Name: glass bottle filling machine
production capacity: 8000bottles per hour
filling head: 32
suitable bottle: Glass bottle
bottle standard: 250ML-1500ML
guarantee time: 1 year free , lifelong maintance
Packaging & Delivery
Packaging Details: | glass bottle filling machine in wooden case package |
---|
Delivery Detail: | after received bottles 20days |
---|
This New design soft drinks glass bottle filling machine is mainly used in washing, filling and sealing gas containing beverage into glass bottle such as carbonated drink, cola, soft drinks ect.The machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation.
Rinsing machine
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

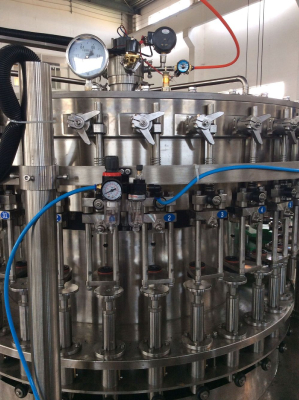

Filling machine
-The starwheels drive the bottles always by the neck through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
- The filling valves are fully made of stainless steel with food grade, sterilization-resisting plastic gaskets. The valves are secured to the bowl and allow easy assembly and disassembly.
Crown Capping machine
Rotative capping turrent, suitable to the application of aluminum screw cap or metal crown caps on glass bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Q&A
Q: Your Company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory for Beverage packing plant located in ZHANGJIAGANG.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are
made by our technical team forBeverage Packing Plant.
Q: What is the ability of your factory?
A: About 50~100 lines per year for Beverage Packing Plant.
Q: Do you have any technical supports about your products?
A: We have a technical term to deal with all technical problems for Beverage Packing Plant.
Q: Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system for Beverage Packing Plant.
Q: How do you make the quotation for clients?
A: The price depends on capacity and performance for Beverage Packing Plant.
